SPECIFICATIONS
TECHNICAL SPECIFICATIONS

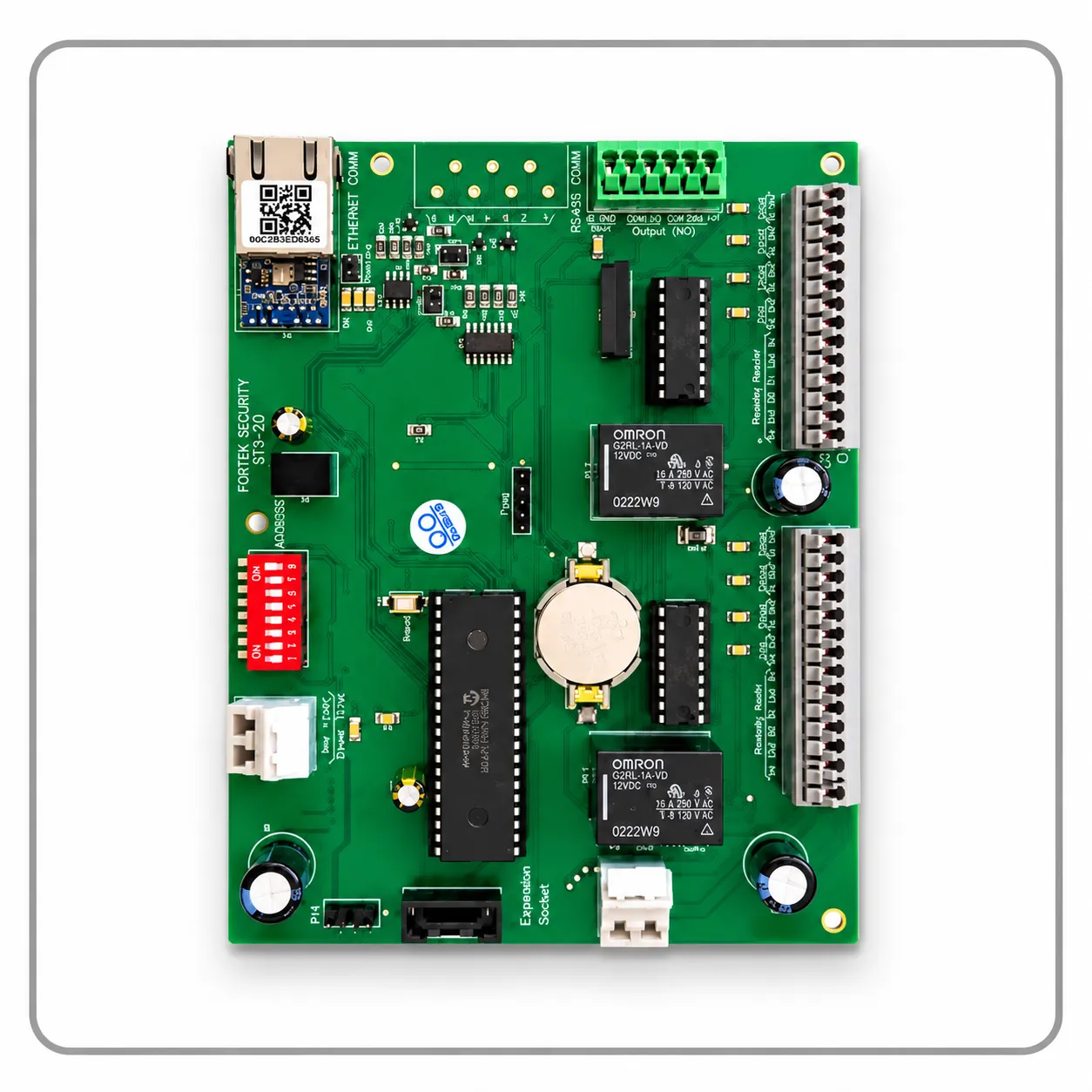

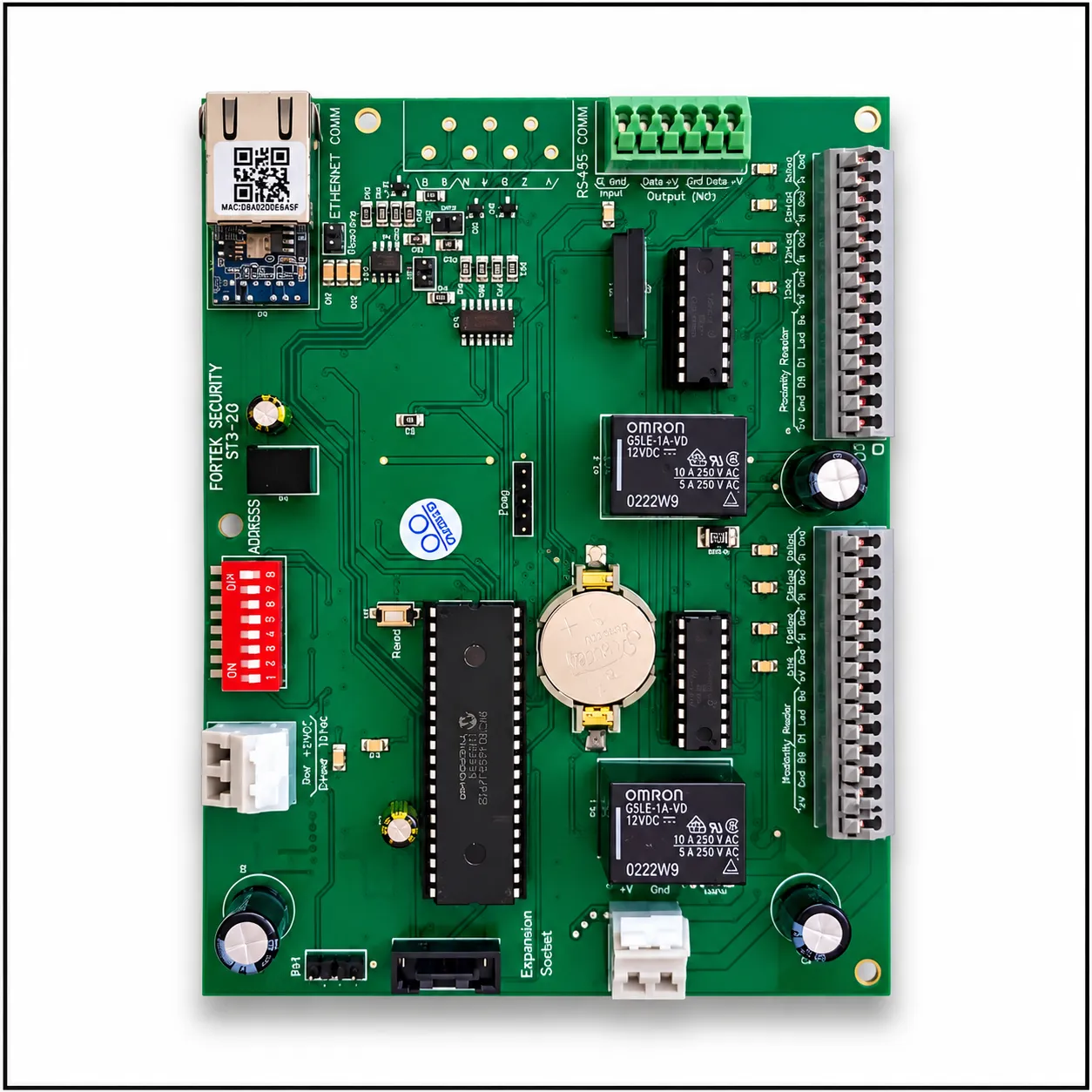

| Model | ST3-IP |
| Doors Supported | Two (2) doors, expandable to fourteen (14) |
| Type of Technology | Distributed MicroController |
| Prox. Reader Interface | Wiegand 26bits, 37bits & 40 bits |
| Access or Exit Reader | Supported for each door |
| Release Input | Supported for each door |
| Door Contact | Supported for each door |
| Exit Motion Sensor | Supported for each door |
| Communication I | Ethernet – Configurable: DHCP/Static IP/Ports |
| Communication II | RS485 – Half & Full Duplex |
| Safety Standards | Designed to conform to UL 294 |
| Locking Devices | 12VDC/24VDC Electric Strike Or Magnetic Lock |
| Board Protection | Overcurrent, overvoltage, & reverse flow protection |
| On Board LED Status | Board power, locks power, sensors, door unlocked |
| Input Voltage Board | 12VDC to 14VDC |
| Board Power Consumption | 0.033A |
| Power Supply Board | 12VDC, 1.4A(min) |
| Power Supply Locking Devices | 12VDC OR 24VDC, current model dependent |
| Interface Fire Alarm Panel | Supported |
| Power Supply Monitoring | Supported |
| Programmable Input/Output | Supported |
| FCC & IC Compliance | Complies with part 15 of the FCC rules Class A |
RECOMMENDED WIRING
| Wiegand Card Reader and Keypad | Wire Type: 6 conductors, shielded Size: 22AWG to 18AWG Maximum Length: 500 ft (150 m) |
| Ethernet | Wire Type: CAT 5e / CAT 6 Size: 24AWG/23AWG Maximum Length: 300 ft (100 m) |
| RS485 (Half Duplex, Full Duplex) | Wire Type: CAT 5e / CAT 6 Size: 24AWG/23AWG Maximum Length: 300 ft (100 m) |
| Door Strike/Maglock | Wire Type: 2 conductors, solid cooper Size: 18AWG Maximum Length: 300 ft (100 m) |
| Door Contact Input | Wire Type: 2 conductors, solid cooper Size: 22AWG Maximum Length: 1000 ft (300 m) |
| Release Input | Wire Type: 2 conductors, solid cooper Size: 22AWG Maximum Length: 1000 ft (300 m) |
| Exit Motion Input | Wire Type: 4 conductors, solid cooper Size: 22AWG Maximum Length: 1000 ft (300 m) |
| Fire Alarm Input | Wire Type: 2 conductors, solid cooper Size: 22AWG Maximum Length: 1000 ft (300 m) |
