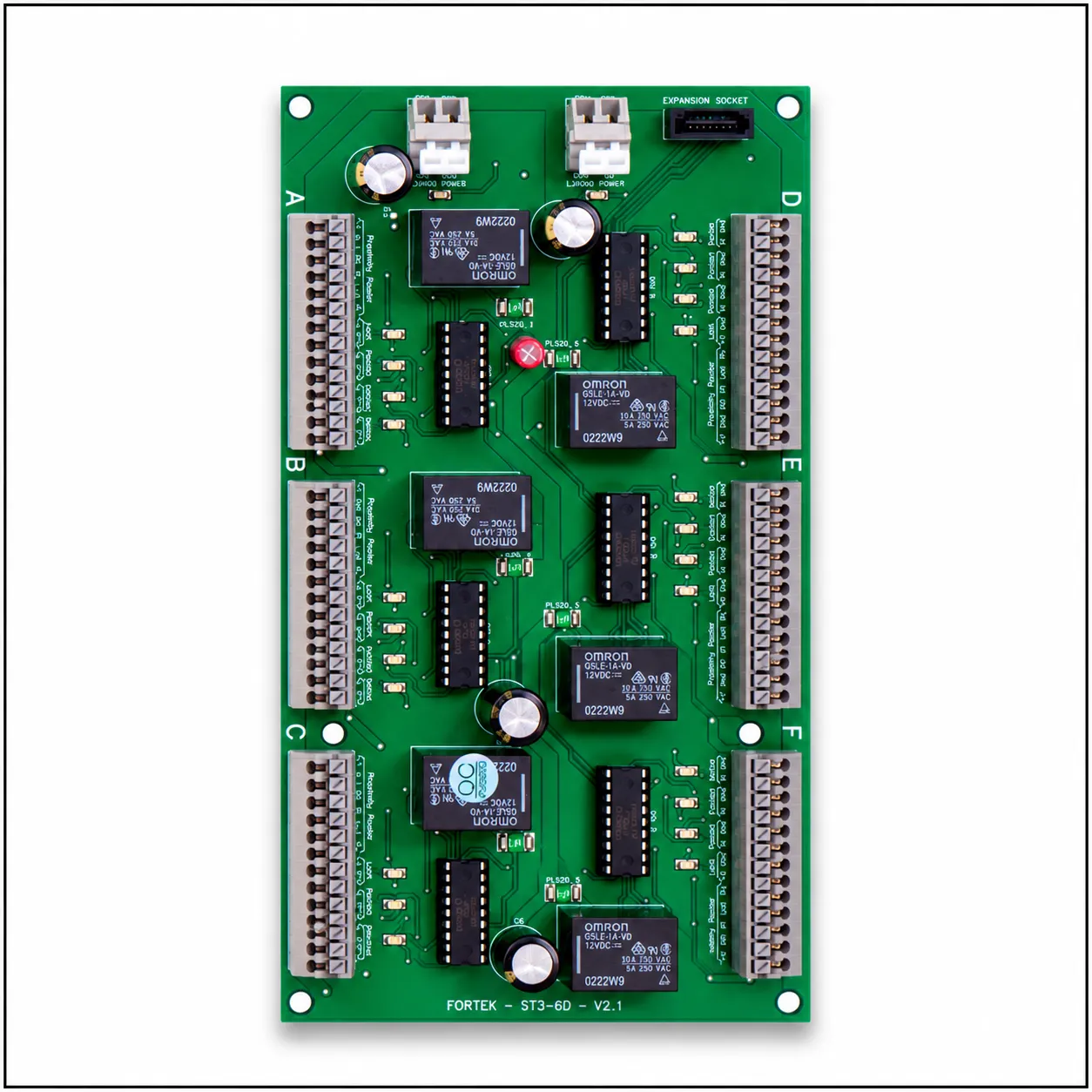

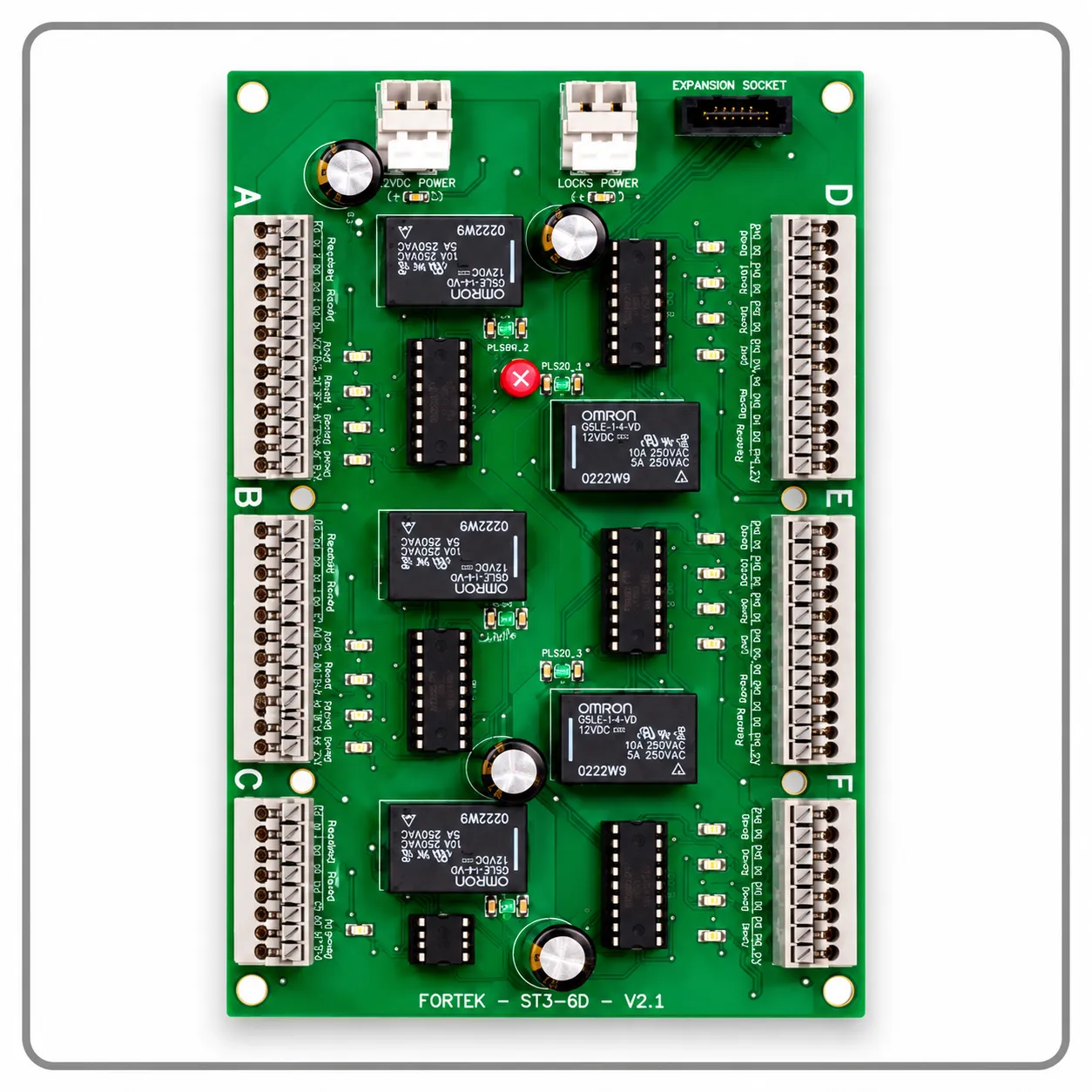

Expansion Module ST3-6D

ST3 Expansion module for six (6) doors. Increases the control and monitoring capabilities of ST3 door controller to eight (8) doors.

SKU: 14 Category:

Description

  • Expansion module for ST3 door control system
  • Distributed micro-controller technology: allows to read credentials from all proximity readers at the same time
  • Number of doors supported: Six (6) doors
  • Supports release input for each door
  • Supports door contact monitoring for each door
  • Supports exit motion sensor for each door
  • Supports direct connection of 12Vdc electric strikes and magnetic locks
  • Specs for locking device 12Vdc, 0.5 A max
  • Led’s status on board – sensors status and door unlock status
  • Input Voltage: 12Vdc to 14Vdc
  • Expansion board consumption: 200 mA
  • Recommended power supply: 12Vdc, 3.5 A – When power supply provides power to expansion board and six (6) locking devices
Expansion Module ST3-6D
