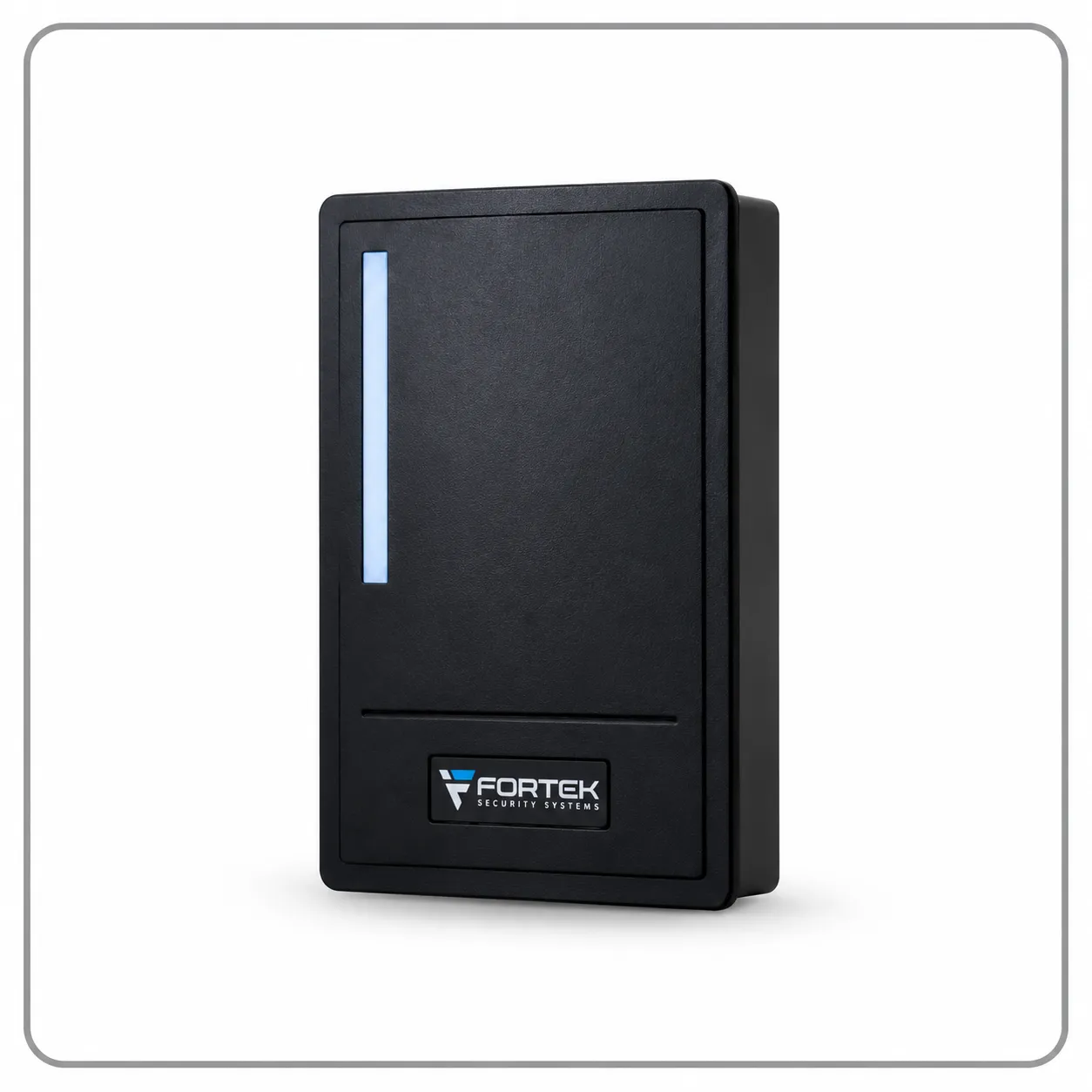

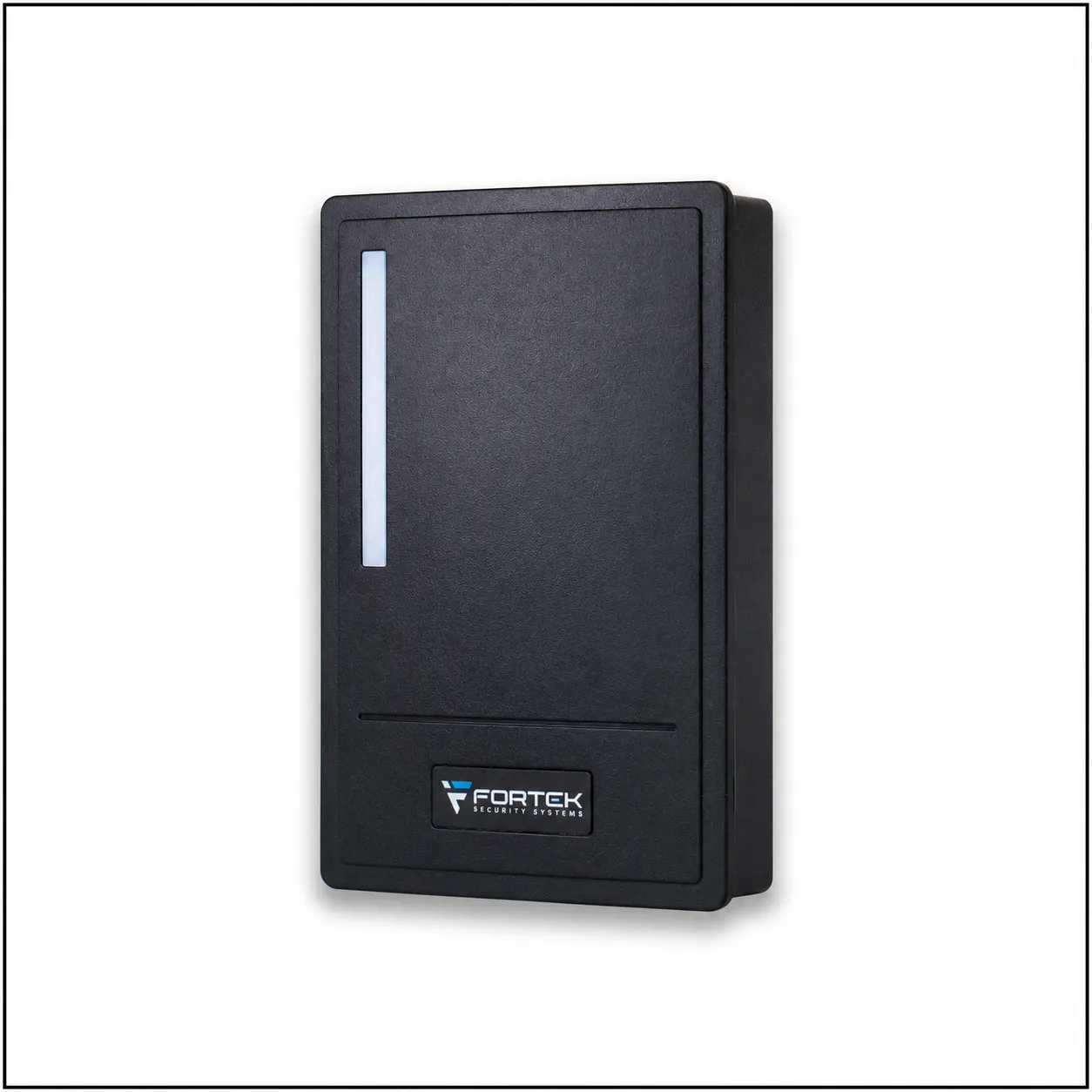

PR2-PROXIMITY READER

The PR2 Proximity Reader family consists of high-performance devices compatible with 125 kHz EM and HID credentials, as well as 13.56 MHz Mifare credentials. Operating via the Wiegand protocol, each reader features integrated LED indicators, an audible buzzer, and a built-in tamper alarm. Designed for easy installation, it fits standard single-gang electrical boxes

Category: Proximity Readers

Specifications

KEY FEATURES

PR2-EM
Compatible Credential	125khz, EM
Protocol, Interface	Wiegand 26-37 bits Led Line, Buzzer line
Operating Voltage	12VDC to 14VDC
Tamper Alarm	Built-in rear light sensor & siren
Environmental	Operat. Temp: -40C to 60C Hum:0% to 96 RH Portecttion: IP66
Dimension	122 mm(L) x 75mm(W) x 17mm(H)
Safety Standards	Designed to conform to UL 294
FCC & IC Compliance	Complies with part 15 of the FCC rules Class A

PR2-K
Compatible Credential	125khz, HID & EM
Protocol, Interface	Wiegand 26-37 bits Led Line, Buzzer line
Operating Voltage	12VDC to 14VDC
Tamper Alarm	Built-in rear light sensor & siren
Environmental	Operat. Temp: -40C to 60C Hum:0% to 96 RH Portecttion: IP66
Dimension	122 mm(L) x 75mm(W) x 17mm(H)
Safety Standards	Designed to conform to UL 294
FCC & IC Compliance	Complies with part 15 of the FCC rules Class A

PR2-KX
Compatible Credential	125khz, HID & EM – 13.56 mhz, Mifare
Protocol, Interface	Wiegand 26-37 bits Led Line, Buzzer line
Operating Voltage	12VDC to 14VDC
Tamper Alarm	Built-in rear light sensor & siren
Environmental	Operat. Temp: -40C to 60C Hum:0% to 96 RH Protection: IP66
Dimension	122 mm(L) x 75mm(W) x 17mm(H)
Safety Standards	Designed to conform to UL 294
FCC & IC Compliance	Complies with part 15 of the FCC rules Class A

WIRING

MODEL	PR2-EM, PR2-K, PR2-KX,
WIRE TYPE	6 x Conductors Shielded
SIZE	22AWG to 22AWG
MAXIMUM LENGHT	500 ft (150 m)

Downloads

Product Downloads

Download the product cutsheet

Download Cutsheet PDF

Additional information

Weight	0.15 kg
