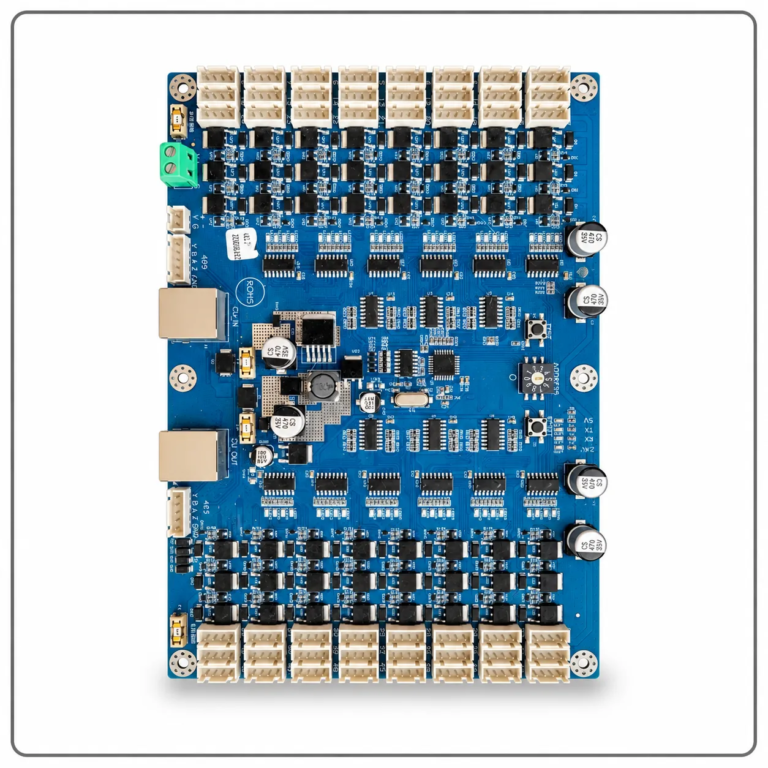

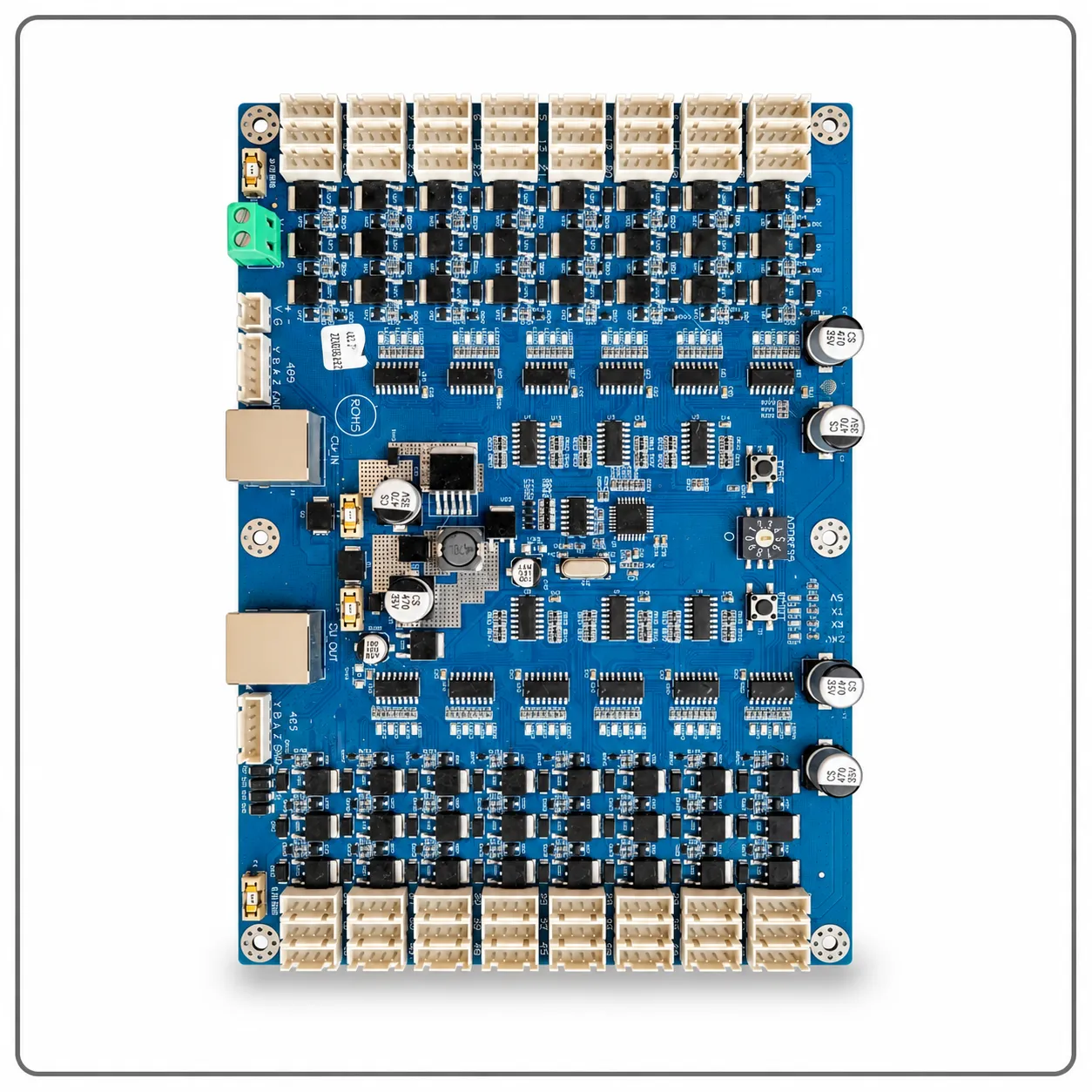

Locker Expansion – 48 Lockers
Specifications
TECHNICAL SPECIFICATIONS
| FL48-IP / FL-EXP48 |
| Model |
FL48-IP / FL-EXP48 |
Input Voltage Locker Interface Board |
24VDC to 26VDC |
| Lockers Supported |
48 |
Input Locker Interface Board |
1.2A per lock |
| Type of Technology |
Distributed MicroController |
Board Protection |
Overcurrent, overvoltage, and reverse voltage protection |
| Locker Output |
24V direct to each locker locking device (N.O) |
Display Power |
5V DC, 1A |
| Locker Sensors Input |
24VDC Infrared Strip (Locker Occupied) / Latch Sensor (open/close) |
Display Graphic Specs |
7 inches, graphical matrix, 1024 × 600, 154.2 × 85.9 mm |
| Communication |
Ethernet – Configurable: DHCP / Static IP / Ports |
Display Interface |
UART |
| Programmable Input/Output |
Supported |
Safety Standards |
Designed to conform to UL 294 |
| Input Controller Board Power |
12VDC to 14VDC, 0.7A |
FCC & IC Compliance |
Complies with Part 15 of the FCC Rules, Class A |
LOCK TECHNICAL SPECIFICATIONS
| Material |
Zinc Alloy |
Voltage, Current |
24V, 1.2A – available latch sensor |
| Size |
52 × 43 × 13.5 mm |
Drive Mode |
Solenoid |
| Working Temperature |
-20°C to +60°C |
Tensile Strength |
2,000N |
| Working Life |
150,000 times |
Certification |
CE; RoHS; FCC |
RECOMMENDED WIRING
| EQUIPMENT |
WIRE TYPE |
SIZE |
MAXIMUM LENGTH |
| Locks (unlocking) |
2 conductors, solid copper |
18AWG |
300 ft (100 m) |
| Locks (latch sensor) |
2 conductors, solid copper |
22AWG |
300 ft (100 m) |
| Infrared Strip |
4 conductors, solid copper |
22AWG |
300 ft (100 m) |
| Card Reader |
6 conductors, shielded |
22AWG |
300 ft (100 m) |
| Ethernet |
CAT 5e / CAT 6 |
24AWG / 23AWG |
300 ft (100 m) |
| Programmable Input/Output |
2 conductors, solid copper |
22AWG |
3280 ft (1000 m) |
