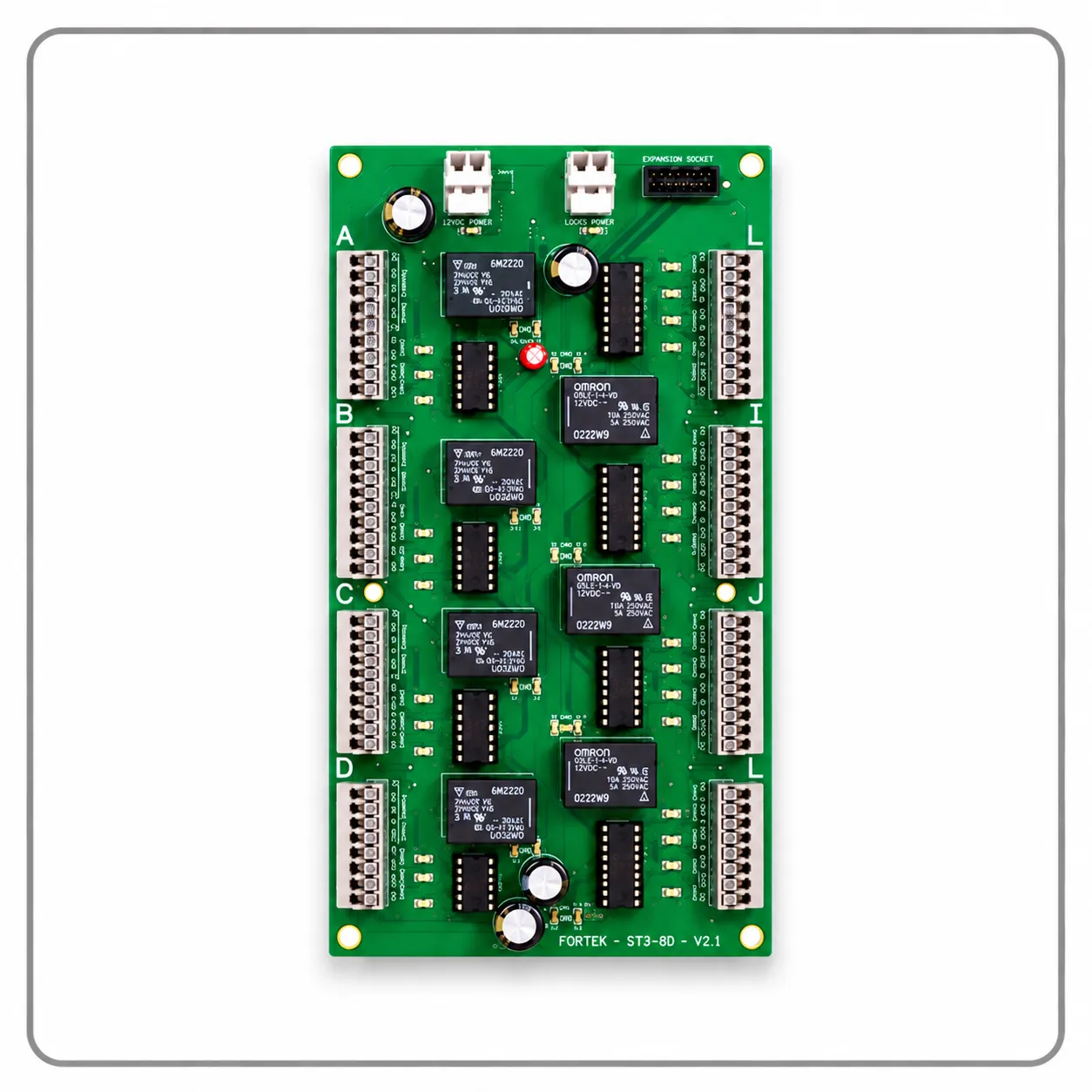

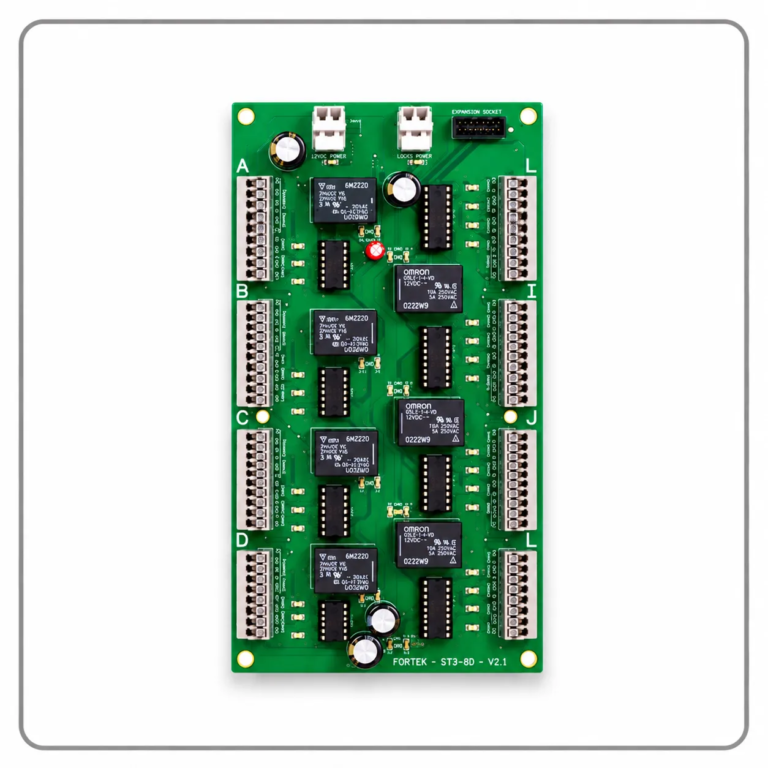

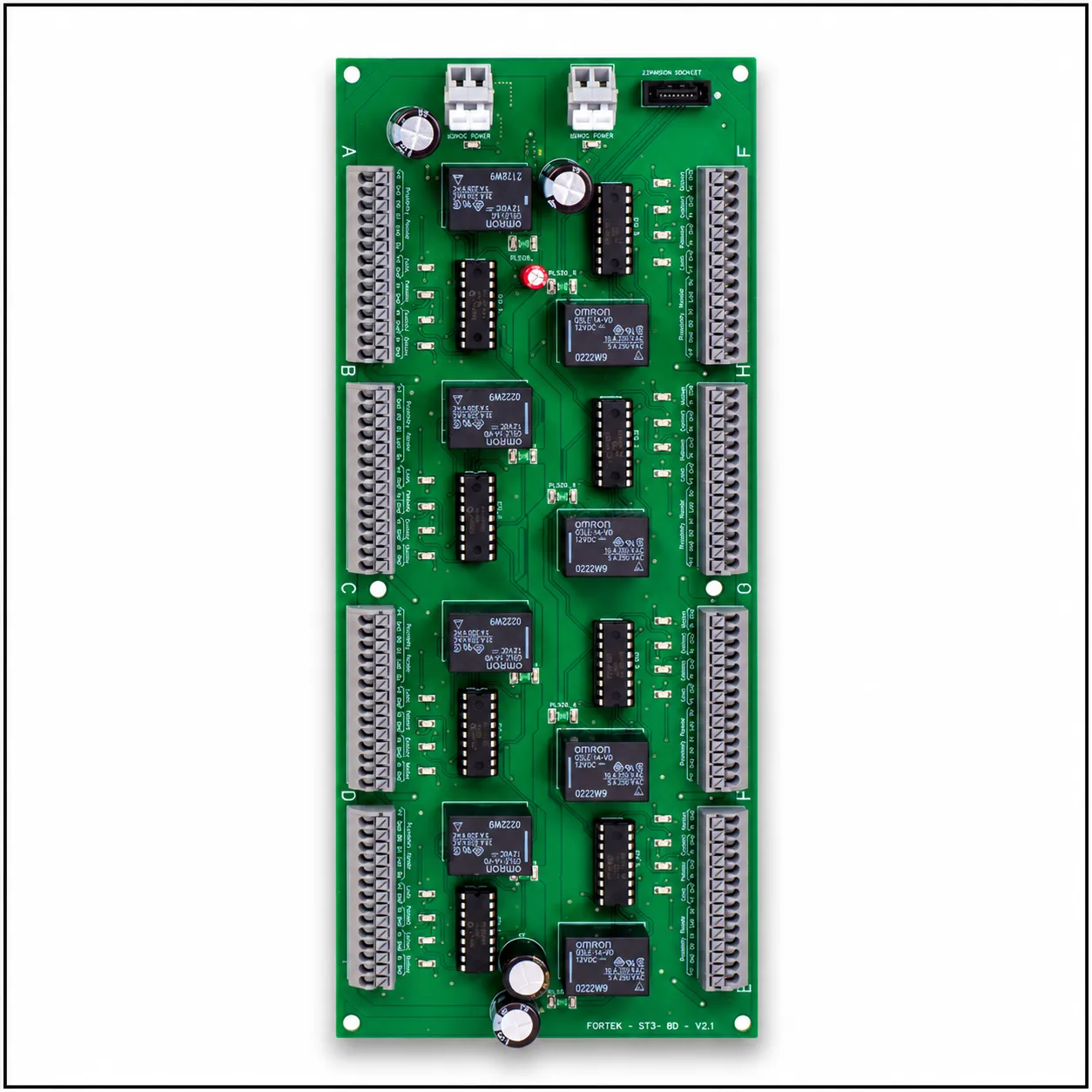

Expansion Module ST3-8D

Description

• Expansion module for ST3 door control system
• Distributed micro-controller technology: allows to read credentials from all proximity readers at the same time
• Number of doors supported: eight (8) doors
• Supports release input for each door
• Supports door contact monitoring for each door
• Supports exit motion sensor for each door
• Supports direct connection of 12Vdc electric strikes and magnetic locks
• Specs for locking device 12Vdc, 0.5 A max
• Led’s status on board: sensors status and door unlock status
• Input Voltage: 12Vdc to 14Vdc
• Expansion board consumption: 270 mA @ 12Vdc
• Recommended power supply: 12Vdc, 4.7 A – When power supply provides power for the expansion board and eight (8) locking devices
